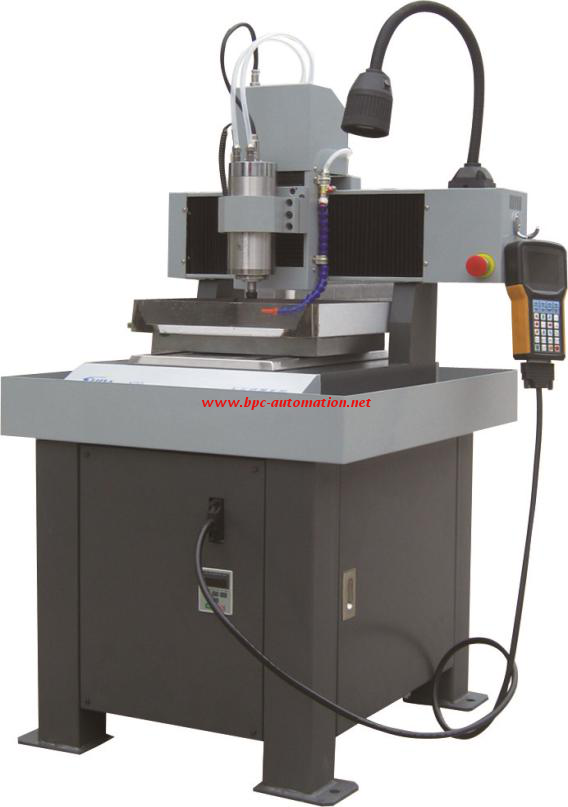

一、Machine picture：
二：Equipment model and configuration：
|
model |
ST-3030N（Basic type） |
ST-3030M（Standard type） |
ST-3030F（High speed type） |
|
Working stroke |
300*300*75MM |
||
|
Fuselage structure |
The main body of the machine tool is cast iron, the support is square steel + cold-rolled sheet metal (electroplated and plastic sprayed), and stainless steel coaming |
||
|
Spindle motor |
Spindle motor of Jiangsu Xing Chen high speed1.5KW |
pindle motor of Jiangsu Xing Chen high speed1.5KW |
pindle motor of Jiangsu Xing Chen high speed1.5KW |
|
Control system |
Weihong handle controller |
Weihong handle controller |
Weihong handle controller |
|
Instruction format and applicable software |
G-code、NC代碼、2D、3D HPHL、PLT |
|
|
|
Executing agency |
雷賽步進(jìn)電機(jī) |
雷賽伺服電機(jī) |
安川伺服電機(jī) |
|
Maximum operating speed |
5M/MIN |
6M/MIN |
8M/MIN |
|
Minimum feed speed |
1mm/S |
0.5mm/S |
0.3mm/S |
|
positioning accuracy |
0.005mm |
0.002mm |
0.001mm |
|
Repetition accuracy |
150DPI |
200DPI |
300DPI |
|
|
|
|
|
|
|
|
|
|
|
electric |
220V AC |
||
1.1 Machine model: ST-3030N
1.2 Machine configuration: 1: The whole machine adopts the casting body;
2: X, Y and Z are Taiwan PMI ball rod;
3: X, Y and Z axes adopt PMI straight square rail imported from Taiwan;
4: X, Y, Z three axles are all using the Hong Kong Resai drive;
5: Configure with 1500W frequency conversion water-cooled motor;
6: Configure HOLIP frequency converter of fortune 500 Denmark;
7: Configure the latest FPGA color screen control system, internal standard 4G storage space;
8: The transmission mechanism adopts special elastic coupling to effectively compensate the parallel error, ensure the stability of the whole machine operation, and extend the service life of the ball screw;
9: Independent control cabinet, strong and weak electricity separation, easy to use and maintenance.
III: Technical parameters:
|
Product model |
ST3030N |
|
Machining dimension |
300*300*75mm |
|
Spindle motor |
1500W |
|
Engraving speed |
500-5000mm/min |
